Description：Brief introduction of Xbs series fine aggregate concrete pump of Jeddah heavy industry: Xbs series fine aggregate concret..
Product Details

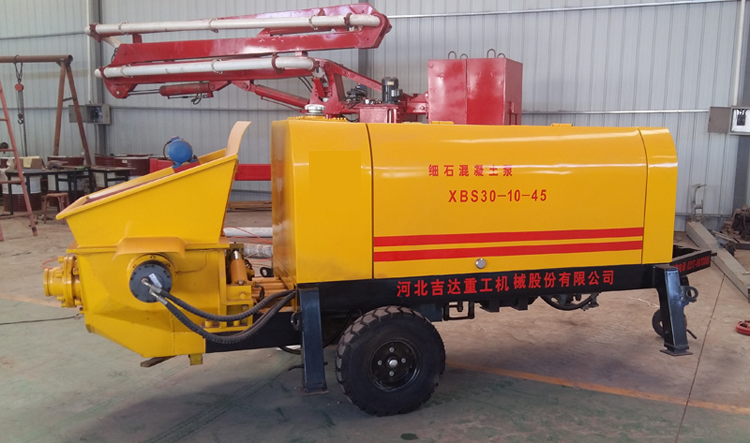

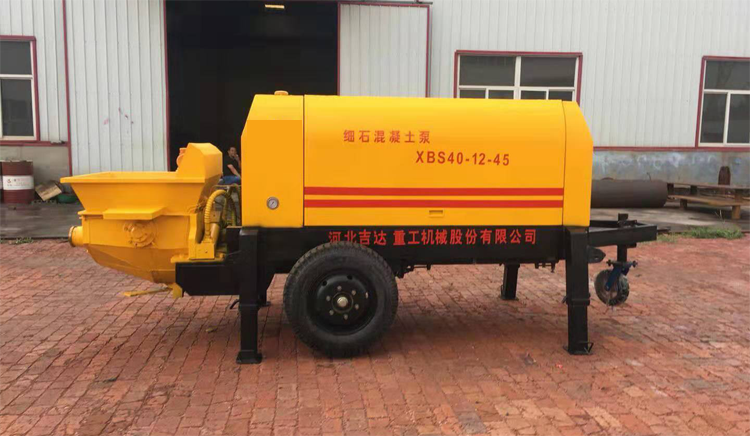

Brief introduction of Xbs series fine aggregate concrete pump of Jeddah heavy industry: Xbs series fine aggregate concrete pump products are applicable to the transportation of fine aggregate concrete, refractory and thermal insulation materials, green soil in ecological environment construction and pressure grouting of various foundation piles.
Characteristics of fine aggregate concrete pump:
Fine aggregate concrete pump adopts s-pipe valve reversing, which can meet the transportation of fine aggregate concrete;
The spectacle plate and cutting ring of fine aggregate concrete pump are made of high hard alloy material with long service life;
The outlet pressure of fine aggregate concrete pump is high, which can meet the transportation requirements of high-rise buildings and long-distance construction;
The hydraulic oil cooling of fine aggregate concrete pump adopts water cooling system, which has good cooling effect and easy to use;
Fine aggregate concrete pump has the function of reverse pump to reduce pipe blockage;
Equipped with manual centralized lubrication system, the service life of rotating parts;
The electrical box is equipped with wired remote control handle for easy operation.
| 細石混凝土泵技術參數（parameter）： | |||||
| 項目 | 單位 | XBS20-08-33 | XBS25-10-37 | XBS30-10-45 | XBS40-12-55 |
| 理論輸送量 Theoretical conveying capacity | m3/h | 20 | 25 | 30 | 40 |
| 出口壓力 Outlet pressure | Mpa | 8 | 10 | 10 | 12 |
| 骨料粒徑 Aggregate size | mm | ≤20 | ≤20 | ≤20 | ≤20 |
| 缸徑×行程 Cylinder bore × trip | mm | ?120×800 | ?120×1000 | ?140×1000 | ?160×1000 |
| 主電機 Main motor | kw | 33 | 37 | 45 | 55 |
| 輸送管內徑 Inner diameter of conveying pipe | mm | ?80 | ?80 | ?100（?80） | ?100（?80） |
| 外形尺寸 Overall dimension | mm | 4000×1400×1500 | 4000×1500×1550 | 4500×1500×1600 | 4600×1550×1800 |
| 重量 weight | ㎏ | 2000 | 2100 | 2200 | 2400 |
| 理論輸送距離 Theoretical conveying distance | m | 水平Horizontal350 | 水平Horizontal350 | 水平Horizontal400 | 水平Horizontal500 |
| 垂直Vertical110 | 垂直Vertical120 | 垂直Vertical150 | 垂直Vertical150 | ||
